Touchalytics

On the Applicability of Touchscreen Input as a Behavioral Biometric for Continuous Authentication

Mario Frank, Ralf Biedert, Eugene Ma, Ivan Martinovic, Dawn Song

We investigate whether a classifier can continuously authenticate users based on the way they interact with the touchscreen of a smart phone. We propose a set of 30 behavioral touch features that can be extracted from raw touchscreen logs and demonstrate that different users populate distinct subspaces of this feature space. In a systematic experiment designed to test if this behavioral pattern exhibits consistency over time, we collected touch data from users interacting with a smart phone using basic navigation maneuvers, i.e., up-down and left-right scrolling. We propose a classification framework that learns the touch behavior of a user during an enrollment phase and is able to accept or reject the current user by monitoring only a small amount of touch data.The classifier achieves a median equal error rate of 0% for intra-session authentication, 2%-3% for inter-session authentication and below 4% for long-term authentication where the authentication test was one week after the enrollment phase.

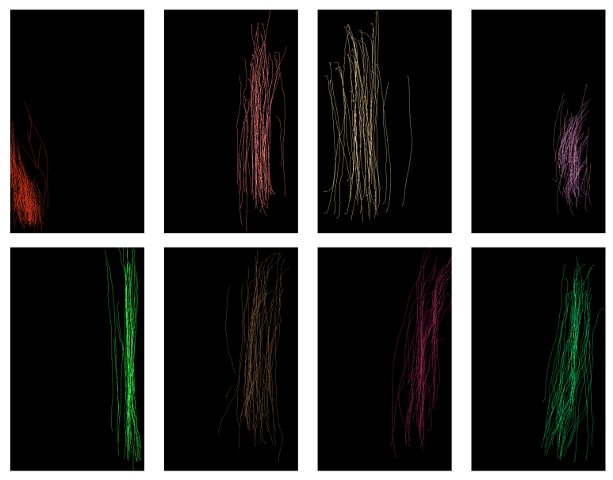

Some example strokes
Example strokes from 8 users.

Corresponding publications:

  • Mario Frank, Ralf Biedert, Eugene Ma, Ivan Martinovic, and Dawn Song
    "Touchalytics: On the Applicability of Touchscreen Input as a Behavioral Biometric for Continuous Authentication".
    In IEEE Transactions on Information Forensics and Security (Vol. 8, No. 1), pages 136-148, IEEE 2013.
    [ abstract | bib | pdf(local) | pdf(arXiv) | doi | paper history]
    05/05/2012: submitted to ACM CCS 2012
    07/09/2012: rejected
    07/26/2012: submitted to IEEE TIFS
    07/26/2012: upload to arXiv
    09/28/2012: submitted minor revision to IEEE TIFS
    10/04/2012: accepted at IEEE TIFS
    10/08/2012: upload of new version to arXiv

  • Mario Frank, Ralf Biedert, Eugene Ma, Ivan Martinovic, and Dawn Song
    "Touchalytics: On the Applicability of Touchscreen Input as a Behavioral Biometric for Continuous Authentication"
    Winner of the best poster award (1 out of 22) at the Intel SCRUB retreat 2013.
    [ poster (pdf) ]

  • Neil Zhenqiang Gong, Mathias Payer, Reza Moazzezi, Mario Frank.
    "Forgery-Resistant Touch-based Authentication on Mobile Devices". In ASIACCS '16: 11th ACM Asia Conference on Computer and Communications Security , pages 499-510, ACM 2016 (acc. rate 20.9%)
    [ abstract | bib | pdf (local) | pdf (arXiv) | doi ]



This dataset contains the raw touch data of 41 users interacting with Android smart phones plus a set of 30 extracted features for each touch stroke.

Download:
data.zip:
Raw touch data, comma-separated.
The columns are 'phone ID','user ID', 'document ID', 'time[ms]', 'action', 'phone orientation', 'x-coordinate', 'y-coordinate', 'pressure', 'area covered', 'finger orientation'.
The column 'action' can take three values 0: touch down, 1: touch up, 2: move
Please find more detailed information in the readme.

features.mat (matlab format) and features.zip (comma separated):
Extracted features for each touch stroke and descriptive strings for all features. The columns 'user id', 'doc id', and 'phone id' contain labels. Do not use them for testing. Please find more detailed information in the readme and in our paper.
For Weka users, Marcelo Damasceno converted the dataset to arff format: data_arff.zip. Thanks!

extractFeatures.m:
A MATLAB script to extract features from raw touch data.
If you apply it to (the extracted) data.zip, it will generate features.mat.
